Differential Diagnosis

  • Sinus tachycardia
  • AV block 1st degree
  • Multifocal atrial tachycardia
  • Wolff-Parkinson-White syndrome
  • Third-degree AV block

Diagnosis

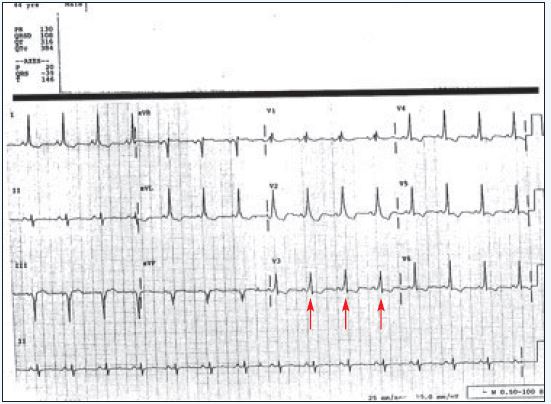

The patient was diagnosed with Wolff-Parkinson-White syndrome (WPW). The ECG reveals a gradual upsloping of the initial reflection of the QRS complex, called delta waves (see arrows). Additional ECG finds may include a shortened PR interval (<120 ms), a widened QRS complex, and ST/T wave changes.

Learnings

  • WPW is a supraventricular re-entrant rhythm which may have a normal rate or fast rate
A 44-Year-Old Man with Intermittent Dizziness
